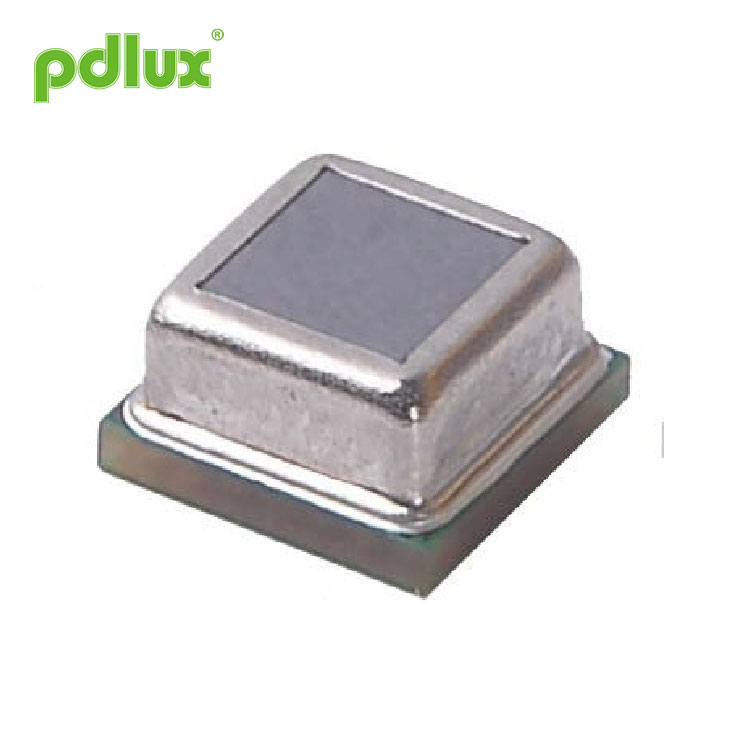

MINI SMD လေးခုပါ ၀ င်သောဒြပ်ထုဆန့်ကျင်ဒစ်ဂျစ်တယ် Pyroelectric Infrared Sensor
MINI SMD လေးသောဒြပ်စင်အနှောင့်အယှက်ပေးသောဒစ်ဂျစ်တယ် Pyroelectric Infrared Sensor မှရရှိသော pyroelectric infrared signal သည်စုံစမ်းစစ်ဆေးမှုအတွင်းရှိခလုတ်ခုံထက်ကျော်လွန်ပါကအတွင်း၌ရေတွက်သောသွေးခုန်နှုန်းဖြစ်ပေါ်သည်။ စုံစမ်းသူသည်ထိုကဲ့သို့သောအချက်ပြမှုကိုထပ်မံလက်ခံရရှိပါက၎င်းသည်ဒုတိယသွေးခုန်နှုန်းကိုရရှိသည်ဟုယူဆလိမ့်မည်။ ၄ စက္ကန့်အတွင်း ၂ ခုသာရရှိသည်နှင့်တပြိုင်နက်စုံစမ်းစစ်ဆေးမှုသည်နှိုးစက်အချက်ပြမှုကိုဖြစ်စေပြီး REL pin သည်အဆင့်မြင့်ခလုတ်တစ်ခုပေါ်လာလိမ့်မည်။
မော်ဒယ်:PD-PIR-462LA-D
စုံစမ်းမေးမြန်းရန်ပေးပို့ပါ။
MINI SMD လေးခုပါ ၀ င်သောဒြပ်ထုဆန့်ကျင်ဒစ်ဂျစ်တယ် Pyroelectric Infrared Sensor
အင်္ဂါရပ်များ အသေးစား SMD reflow ဂဟေနည်းလမ်း ဒစ်ဂျစ်တယ် signal ကိုအပြောင်းအလဲနဲ့ စွမ်းအင်ကိုချွေတာရန်အတွက်စွမ်းအင်စည်းမျဉ်းကိုဖွင့်ပါ ပါ ၀ င်သည့် filter၊ ခိုင်မာသော anti-interference ချိန်ညှိ sensitivity ကို, အချိန်ကိုက်နှင့်အလင်းထိန်းချုပ်မှု အနိမ့်ဗို့အား, micro ပါဝါစားသုံးမှု |
လျှောက်လွှာ အနီအောက်ရောင်ခြည်လှုပ်ရှားမှုထောက်လှမ်း အရာများ၏အင်တာနက် ဝတ်ဆင် စမတ်အိမ်သုံးပစ္စည်း, အိမ် စမတ် luminaires လုံခြုံရေး, မော်တော်ယာဉ်တိုက်ဖျက်ရေးထုတ်ကုန် ကွန်ရက်စောင့်ကြည့်လေ့လာရေးစနစ်၊ |
Product and recommended pad size diagram of MINI SMD လေးခုပါ ၀ င်သောဒြပ်ထုဆန့်ကျင်ဒစ်ဂျစ်တယ် Pyroelectric Infrared Sensor
Basic parameters of MINI SMD လေးခုပါ ၀ င်သောဒြပ်ထုဆန့်ကျင်ဒစ်ဂျစ်တယ် Pyroelectric Infrared Sensor
အောက်ပါဇယားရှိသတ်မှတ်ချက်များထက် ကျော်လွန်၍ မည်သည့်အရာကမဆိုစက်ပစ္စည်းကိုအမြဲတမ်းပျက်စီးစေနိုင်သည်။ သတ်မှတ်ထားသောတန်ဖိုးအနီးတွင်ရေရှည်အသုံးပြုခြင်းသည်ပစ္စည်း၏စိတ်ချရမှုအပေါ်အကျိုးသက်ရောက်နိုင်သည်။
parameter |
သင်္ကေတ |
min |
မက်စ် |
ယူနစ် |
မှတ်ချက် |
ဗို့အား |
VDD |
2.2 |
3.7 |
V |
|
ထောင့်မြင်ကွင်း |
|
X = 110 ° |
y = ၉၀ ဒီဂရီ |
° |
အမြင်ထောင့်၏လယ်ပြင်သည် သီအိုရီတန်ဖိုး |
သိုလှောင်အပူချိန် |
TST |
-40 |
80 |
℃ |
|
လှိုင်းအလျားကိုရှာဖွေပါ |
λ |
5 |
14 |
.m |
|
ပြည်တွင်းပိတ်ပင်တားဆီးမှုပုံ
လုပ်ငန်းခွင်အခြေအနေများ (T = 25 ° C, VDD = 3V, အကယ်၍ အတိအကျမဖော်ပြထားလျှင်)
parameter |
သင်္ကေတ |
min |
စာစီစာကုံး |
မက်စ် |
ယူနစ် |
မှတ်ချက် |
Supply ဗို့အား |
VDD |
2.2 |
3 |
3.7 |
V |
|
အလုပ်လုပ်နေသောလက်ရှိ |
IDD |
9 |
9.5 |
11 |
μA |
|
sensitivity တံခါးခုံ |
VSENS |
90 |
|
2000 |
.V |
|
Output REL |
||||||
အနိမ့် output ကိုလက်ရှိ |
အိုင်အိုလူးရှင်း |
10 |
|
|
mA |
Vol <1V |
မြင့်မားသောလက်ရှိ output ကို |
ဟုတ်လား |
|
|
-10 |
mA |
VOH> (VDD-1V) |
အနိမ့်အဆင့်ကို output ကိုသော့ခတ်အချိန် REL |
TOL |
|
2 |
|
s |
ချိန်ညှိမရပါ |
အဆင့်မြင့် output ကိုသော့ခတ်အချိန် REL |
TOH |
2 |
|
3600 |
s |
|
SENS / ONTIME ကိုရိုက်ထည့်ပါ |
||||||
ဗို့အား input range |
|
0 |
|
VDD / 2 |
V |
The adjustment range is between 0V and VDD / 2 |
လက်ရှိဘက်လိုက်မှုဘက်လိုက်မှု |
|
-1 |
|
1 |
μA |
|
OEN ကိုဖွင့်ပါ |
||||||
input ကိုအနိမ့်ဗို့အား |
ဆိုး |
0.8V-1.2V အကြား အဆိုပါ hysteresis areaရိယာဖြစ်ပါတယ် |
0.8 |
V |
နိမ့်တံခါးခုံကိုအဆင့်မှ OEN ဗို့အား |
|
input မြင့်မားသောဗို့အား |
VIH |
1.2 |
|
|
V |
မြင့်မားသောတံခါးခုံကိုအဆင့်မှနိမ့် OEN ဗို့အား |
လက်ရှိရိုက်ထည့်ပါ |
၂ |
-1 |
|
1 |
μA |
Vss<VIN<VDD |
လှိုနှင့် filter များ |
|
|
|
|
|
|
low-pass filter ကို cutoff ကြိမ်နှုန်း |
|
|
|
7 |
Hz |
|
High-pass filter ကိုဖြတ် - ကြိမ်နှုန်း |
|
|
|
0.44 |
Hz |
|
အဆိုပါချစ်ပ်ပေါ်တွင်လှိုကြိမ်နှုန်း |
FCLK |
|
|
64 |
kHz |
|
output ကိုခလုတ် mode ကို
အဆိုပါအာကာသယာဉ်မှလက်ခံရရှိ pyroelectric အနီအောက်ရောင်ခြည် signal ကိုစုံစမ်းစစ်ဆေးအတွင်း၌ခလုတ်တံခါးခုံကိုကျော်လွန်သွားသောအခါ, ရေတွက်သွေးခုန်နှုန်းပြည်တွင်းရွှေ့ပြောင်းထုတ်ပေးသည်။ စုံစမ်းသူသည်ထိုကဲ့သို့သောအချက်ပြမှုကိုထပ်မံလက်ခံရရှိပါက၎င်းသည်ဒုတိယသွေးခုန်နှုန်းကိုရရှိသည်ဟုယူဆလိမ့်မည်။ ၄ စက္ကန့်အတွင်း ၂ ခုသာရရှိသည်နှင့်တပြိုင်နက်စုံစမ်းစစ်ဆေးမှုသည်နှိုးစက်အချက်ပြမှုကိုဖြစ်စေပြီး REL pin သည်အဆင့်မြင့်ခလုတ်တစ်ခုပေါ်လာလိမ့်မည်။ထို့အပြင်နေသမျှကာလပတ်လုံးလက်ခံရရှိ signal ကိုလွှဲခွင်ထက်ပို 5 ကြိမ်ခလုတ်တံခါးခုံထက်ကျော်လွန်အဖြစ်, တစ်ခုတည်းကိုသာသွေးခုန်နှုန်း REL.The ၏ output ကိုစတင်ရန်လိုအပ်သည်။ အောက်ပါပုံခလုတ်ယုတ္တိဗေဒပုံဥပမာတစ်ခုဖြစ်ပါတယ်။ များစွာသောအစပျိုးခြင်းကိစ္စများတွင် REL ၏ပြုပြင်ထိန်းသိမ်းမှုအချိန်သည်နောက်ဆုံးတရားဝင် Pulse မှစတင်သည်။
ONTIME ပင်အချိန်ကိုက် setting ကို
အာကာသယာဉ်သည်လူ့ခန္ဓာကိုယ်လှုပ်ရှားမှုအချက်ပြမှုကိုရှာဖွေတွေ့ရှိပါက၎င်းသည် REL pin ပေါ်တွင်မြင့်မားသောအဆင့်ကိုထုတ်ပေးလိမ့်မည်။ ဤအဆင့်၏ကြာချိန်ကို ONTIME pin (လျှောက်ထားသည့်ဇယားကိုကြည့်ပါ) တွင်အသုံးပြုသောအဆင့်ကဆုံးဖြတ်သည်။ အကယ်၍ REL အဆင့်မြင့်ကိရိယာတွင်အစပျိုးအချက်ပြမှုများစွာရှိပါကခလုတ်အသစ်တစ်ခုကိုတွေ့ရှိပါက REL အချိန်ကိုပြန်လည်စတင်ပြီးအချိန်ကိုက်ပြန်လည်စတင်ပါလိမ့်မည်။
၁။ အလုပ်လုပ်သော current သည်ရွေးချယ်ထားသောခုခံမှုနှင့်သက်ဆိုင်သည်။ REL ထိရောက်သောနှောင့်နှေးသည့်ကာလအတွင်း R သုံးစွဲသောပျမ်းမျှလျှပ်စစ်ပမာဏမှာ IR: 0.75VDD / R ဖြစ်သည်။ ထိရောက်သောနှောင့်နှေးမှုကာလအတွင်း R သည်လျှပ်စီးအားမကုန်ပါ။ အကယ်၍ သင့်တွင်စွမ်းအင်သုံးစွဲမှုမြင့်မားသောလိုအပ်ချက်များရှိပြီးထိရောက်သောနှောင့်နှေးမှုကာလ၌ရှိပါကဒစ်ဂျစ်တယ် REL အချိန်ကာလကိုအသုံးပြုရန်အကြံပြုသည်။
2. If the digital REL timing mode is adopted, the ONTIME pin is connected to a fixed potential whose maximum value is less than VDD / 2 (in actual use, the resistor divider can be used to adjust the REL timing). The ONTIME input voltage sets the REL output holding time through the only trigger. Refer to the table below for the output delay timing (Time Td) and voltage settings. မှတ်ချက်: When using the digital REL timing method, the ONTIME pin voltage must not be higher than VDD / 2, and the timing time can only be selected from one of the 16 times in the table below. If the time in the table below is not suitable, it is recommended to use the analog REL timing method.
အချိန်ဂီယာ |
Setting time (s) (စာစီစာကုံးical value) |
TIME pin ကိုဗို့အားအကွာအဝေး |
စာစီစာကုံး |
ခွဲဝေ resistor ၏အကြံပြုတန်ဖိုး (တိကျမှန်ကန်မှု - ၁%) |
|
|
|
|
|
Pull-up, resistor RH |
ခုခံ RL ဆွဲ |
1 |
2 |
0 ~ 1 / 32VDD |
1 / 64VDD |
တင်ထားသည် / 1M |
0R |
2 |
5 |
1 / 32VDD ~ 2 / 32VDD |
3 / 64VDD |
1M |
51K |
3 |
10 |
2 / 32VDD ~ 3 / 32VDD |
5 / 64VDD |
1M |
82K |
4 |
15 |
3/32VDD ~ 4 / 32VDD |
7 / 64VDD |
1M |
124K |
5 |
20 |
4 / 32VDD ~ 5 / 32VDD |
9 / 64VDD |
1M |
165K |
6 |
30 |
5 / 32VDD ~ 6 / 32VDD |
11 / 64VDD |
1M |
210K |
7 |
45 |
6 / 32VDD ~ 7 / 32VDD |
13 / 64VDD |
1M |
255K |
8 |
60 |
7 / 32VDD ~ 8 / 32VDD |
15 / 64VDD |
1M |
309K |
9 |
90 |
8 / 32VDD ~ 9 / 32VDD |
17 / 64VDD |
1M |
360K |
10 |
120 |
9 / 32VDD ~ 10 / 32VDD |
19 / 64VDD |
1M |
422K |
11 |
180 |
10 / 32VDD ~ 11 / 32VDD |
21 / 64VDD |
1M |
487K |
12 |
300 |
11 / 32VDD ~ 12 / 32VDD |
23 / 64VDD |
1M |
560K |
13 |
600 |
12 / 32VDD ~ 13 / 32VDD |
25 / 64VDD |
1M |
634K |
14 |
900 |
13 / 32VDD ~ 14 / 32VDD |
27 / 64VDD |
1M |
732K |
15 |
1800 |
14 / 32VDD ~ 16 / 32VDD |
29 / 64VDD |
1M |
825K |
16 |
3600 |
15 / 32VDD ~ 16 / 32VDD |
31 / 64VDD |
1M |
953K |
အထိခိုက်မခံ settings ကို
မဟုတ်ဘူး။ |
pin ကိုဗို့အား SENS |
မဟုတ်ဘူး။ |
pin ကိုဗို့အား SENS |
||
|
ဗို့အား range (VDD) |
ဗဟိုဗို့အား (VDD) |
|
ဗို့အား range (VDD) |
ဗဟိုဗို့အား (VDD) |
0 |
0 ~ 1/64 |
1/128 |
16 |
16/64 ~ 17/64 |
33/128 |
1 |
1/64 ~ 2/64 |
3/128 |
17 |
17/64 ~ 18/64 |
35/128 |
2 |
2/64 ~ 3/64 |
5/128 |
18 |
18/64 ~ 19/64 |
37/128 |
3 |
3/64 ~ 4/64 |
7/128 |
19 |
19/64 ~ 20/64 |
39/128 |
4 |
3/64 ~ 5/64 |
9/128 |
20 |
20/64 ~ 21/64 |
41/128 |
5 |
5/64 ~ 6/64 |
11/128 |
21 |
21/64 ~ 22/64 |
43/128 |
6 |
6/64 ~ 7/64 |
13/128 |
22 |
22/64 ~ 23/64 |
45/128 |
7 |
7/64 ~ 8/64 |
15/128 |
23 |
23/64 ~ 24/64 |
47/128 |
8 |
8/64 ~ 9/64 |
၁၇/၁၂၈ |
24 |
24/64 ~ 25/64 |
49/128 |
9 |
9/64 ~ 10/64 |
19/128 |
25 |
25/64 ~ 26/64 |
51/128 |
10 |
10/64 ~ 11/64 |
၂၁/၁၂၈ |
26 |
26/64 ~ 27/64 |
53/128 |
11 |
11/64 ~ 12/64 |
23/128 |
27 |
27/64 ~ 28/64 |
55/128 |
12 |
12/64 ~ 13/64 |
25/128 |
28 |
28/64 ~ 29/64 |
57/128 |
13 |
13/64 ~ 14/64 |
27/128 |
29 |
29/64 ~ 30/64 |
59/128 |
14 |
14/64 ~ 15/64 |
29/128 |
30 |
30/64 ~ 31/64 |
61/128 |
15 |
15/64 ~ 16/64 |
31/128 |
31 |
31/64 ~ 32/64 |
63/128 |
The voltage input by SENS sets the sensitivity threshold, which is used to detect the strength of the PIR signal input by PIRIN and NPIRIN. When grounded, it is the minimum voltage threshold, and the sensitivity is the highest at this time. Any voltage exceeding VDD / 2 will select the maximum threshold. This threshold is the lowest sensitive setting for PIR signal detection, that is, the sensing distance may be the smallest. It should be pointed out that the sensing distance of the infrared sensor is not linearly related to the SENS input voltage. Its distance is related to the signal-to-noise ratio of the sensor itself, the imaging object distance of the Fresnel lens, the background temperature of the moving human body, the ambient temperature, the ambient humidity, and electromagnetic interference. And other factors form a complex and multiple relationship, that is, the output result cannot be judged by a single index, and the debugging result shall prevail in actual use. The lower the voltage of the SENS pin, the higher the sensitivity, and the longer the sensing distance. There are a total of 32 sensing distances to choose from, and the closest sensing distance can reach centimeter level. In actual use, the resistance divider can be used to adjust the sensitivity.
OEN pin ချိန်ညှိချက်များ
OEN သည် REL output အတွက် enable pin ဖြစ်သည်။ OEN သည်နိမ့်သောဗို့အားကိုထည့်သောအခါ REL output သည်အမြဲနိမ့်သည်။ OIN သည်မြင့်မားသောဗို့အားကိုသွင်းသောအခါ၊ PININ / NPIRIN pin သည် sensor မှတစ်ဆင့်ပုံမှန်လူ့ခန္ဓာကိုယ်ဖြစ်ပေါ်မှုအချက်ပြမှုကိုသိသောအခါ REL သည်မြင့်မားသောအဆင့်ကိုထုတ်ပေးသည်။ ၎င်းသည်လူ့ခန္ဓာကိုယ်အချက်ပေးအချက်ပြမှုမရှိသည့်တိုင်အောင် REL ကိုဖြတ်သန်းသည်။ REL သည်နိမ့်သည်။ အဆင့်။ ၂ စက္ကန့်ခန့်အကာအကွယ်ပေးသည့်အချိန်ပြီးနောက်လူ့ခန္ဓာကိုယ်၏အချက်ပြမှုကိုထပ်မံသိရှိနိုင်သည်။ OEN pin သည် photoresistor သို့မဟုတ် photodiode နှင့်ချိတ်ဆက်နိုင်သည်။ နေ့ခင်းဘက်တွင်အလုပ်လုပ်ခြင်းမရှိဘဲညဘက်တွင်အလုပ်လုပ်ခြင်းမဟုတ်ကြောင်းကိုနားလည်ရန်ဖြစ်သည်။
စာစီစာကုံးical application circuit
Triode လျှောက်လွှာဥပမာ
Reflow ဂဟေ
အာရုံခံ reflow ဂဟေညွှန်ကြားချက်
reflow ဂဟေဆော်သည့်အခါကျေးဇူးပြုပြီးအောက်ဖော်ပြပါပုံတွင်ဖော်ပြထားသောအပူချိန်ကွေးကိုလိုက်နာပါ။ အောက်ဖော်ပြပါပုံတွင်ဖော်ပြထားသော reflow အပူချိန်ထက်ကျော်လွန်သောအရာအားလုံးကိုအရောင်းအင်ဂျင်နီယာနှင့်ကြိုတင်ဆွေးနွေးရမည်။
ထုပ်ပိုး
မှတ်ချက်: The standard package is 1000 pieces, and the package quantity and size vary slightly according to different models.
မှတ်ချက် for welding
အပေါ်ကပုံမှာပြထားတဲ့အပူချိန်အမြင့်ဆုံးအပူချိန်ထက်မပိုစေနဲ့၊
reflow soldering နှင့်ထပ်ခါတလဲလဲအပူနှင့် disassembly ကိုမထပ်မံပါနှင့်။ ၎င်းသည်အာရုံခံ၏သက်တမ်းနှင့်စွမ်းဆောင်နိုင်မှုကိုအကြီးအကျယ်သက်ရောက်စေနိုင်ပြီးထုတ်ကုန်အာမခံနှင့်မသက်ဆိုင်ပါ။
အာရုံခံကိရိယာပြတ်တောက်ခြင်းသို့မဟုတ်ပျက်ခြင်းဖြစ်စေနိုင်သည့် optical filter ကို (လုံးဝအီသနောတွင်သုံးနိုင်သည်) ကိုသန့်ရှင်းရေးလုပ်ရန်တောက်ပသောဓာတုပစ္စည်းများမသုံးပါနှင့်။ အာရုံခံကိရိယာတပ်ဆင်ပြီးနောက်ချက်ချင်းမသုံးပါနှင့်၊ 1H ပြီးနောက်အသုံးပြုရန်အကြံပြုပါသည်။
Be careful not to touch the terminals with metal pieces or hands. မှတ်ချက် for welding:
operating ပတ်ဝန်းကျင်အပူချိန် (စိုထိုင်းဆ) အကွာအဝေး
> Temperature: Working temperature: -30℃~+70℃ (no fog or icing, temperature change may cause sensitivity and distance change) သိုလှောင်အပူချိန်: -40℃~ +80℃
Hžစိုထိုင်းဆ: အလုပ်လုပ်ခြင်းစိုထိုင်းဆ: ¤ R ၈၅% RH (မြူမအေးသို့မဟုတ်အေးခဲမနေသင့်)
သိုလှောင်စိုထိုင်းဆ: â 60% RH
environmentžအသုံးပြုမှုပတ်ဝန်းကျင်အပူချိန်နှင့်လိုက်လျောညီထွေရှိမှုအတိုင်းအတာနှင့်စပ်လျဉ်း။ ၎င်းသည်အပူချိန်နှင့်စိုထိုင်းဆကိုရည်ညွှန်းသည်။ ၎င်းသည်အာရုံခံစနစ်ကိုအမြဲတမ်းအလုပ်လုပ်စေနိုင်သည်။ မြင့်မားသောအပူချိန်နှင့်မြင့်မားသောစိုထိုင်းဆပတ်ဝန်းကျင်တွင်အသုံးပြုသောအခါ, အာရုံခံကိရိယာအိုမင်းအရှိန်မြှင့်ပါလိမ့်မယ်။
အခြားထည့်သွင်းစဉ်းစား
Misžပုံမှန်လျှပ်စစ်မီး၊ လျှပ်စီးလက်ခြင်း၊ မိုဘိုင်းဖုန်းများ၊ ရေဒီယိုများနှင့်ပြင်းအားမြင့်သောအလင်းများကဲ့သို့သောလျှပ်စစ်ဆူညံသံများကြောင့်အမှားအယွင်းများဖြစ်ပွားနိုင်သည်။
windž ၀ ယ်ယူသူများ၏ terminal ထုတ်ကုန်ကိုလေနှင့်လှုပ်ခြင်းကြောင့်ဖြစ်ပေါ်လာသောချွတ်ယွင်းမှုကိုရှောင်ရှားရန်ခိုင်မြဲစွာ install လုပ်သင့်သည်။
strongž၎င်းသည်ပြင်းထန်သောတုန်ခါမှုသို့မဟုတ်သက်ရောက်မှုကြောင့်ပျက်စီးသွားပြီးချွတ်ယွင်းမှုကိုဖြစ်ပေါ်စေသည်။ ပြင်းထန်သောတုန်ခါမှုသို့မဟုတ်ထိရောက်မှုကိုရှောင်ရှားပါ။
ဤထုတ်ကုန်သည်ရေစိုခံ။ ဖုန်မှုန့်မခံနိုင်သောထုတ်ကုန်မဟုတ်ပါ။ အသုံးပြုသောအခါ၎င်းသည်ရေစိုခံ၊ ဖုန်မှုန့်၊ အညစ်အကြေးနှင့်ရေခဲကာကွယ်မှုဖြစ်သင့်သည်။
thežအလုပ်လုပ်သောပတ်ဝန်းကျင်တွင်တဖြည်းဖြည်းစားနိုင်သည့်ဓာတ်ငွေ့တည်ငြိမ်ပါက၎င်းသည်ချွတ်ယွင်းမှုကိုဖြစ်ပေါ်စေသည်။
